Example of how the double tracks fit in this bay window shape. This allows for 2 pairs of floor length curtains.
The sketch above shows a top view ofthe position of the double bay tracks on a "splay bay with returns" style bay window.
On the other image the front bay track simply curves back to the wall within the bay. Rather than returning out of the bay.

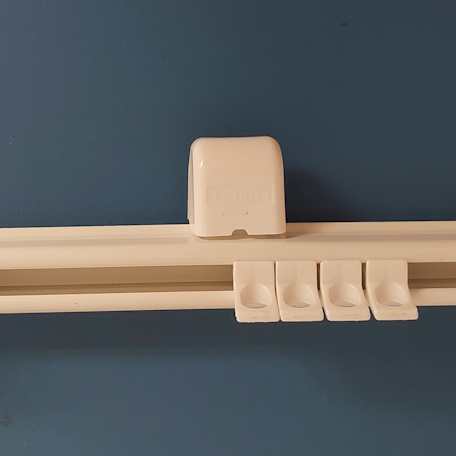

Track profile 15mm deep (17mm deep with ceiling brackets)
4 brackets options to suit all track fitting situations
Can be be made with bends or smooth gradual curve
Can be made up to 5 metres wide
Screws and plugs supplied (same ones we use)
Track profile 15mm deep (17mm deep with ceiling brackets)
4 brackets options to suit all track fitting situations
Can be be made with bends or smooth gradual curve
Can be made up to 5 metres wide
Screws and plugs supplied (same ones we use)
Be aware that they will only work if both tracks are ceiling fitted within the bay!

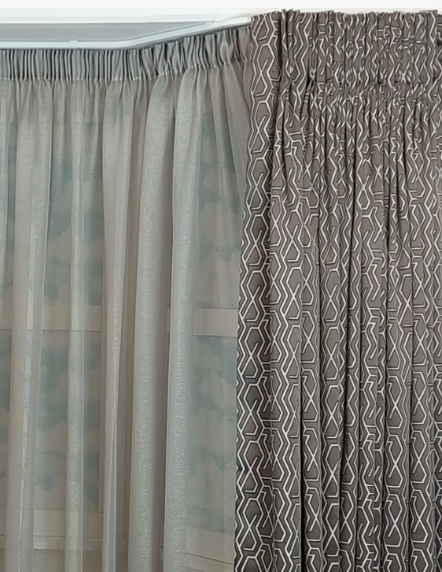

In general the inner sheer curtain track will be ceiling mounted just within the bay. Following around the front lip of the window sill. Allowing for long sheer curtains to be hung.

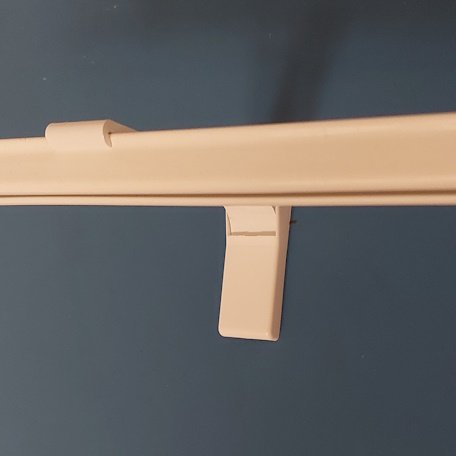

Then the outer main curtain track will also be be ceiling mounted within the bay. There will be 10cm gap between these ceiling mounted tracks within the bay. Then the main track will usually return out of the bay on each side. Then secured using wall brackets.
On accasion when the ceiling in the bay is at the same height as the ceiling in the room. Then the main curtain track returns will also be ceiling mounted.
All wall mounted double tracks!
If you want a wall mounted double track. Then get in touch with us here. Also, send a photo of your whole bay window.
We will then get back to you ASAP. Letting you know if will be possible.
Then get in touch with us via the contact form here. We will gladly advise you on the best option to suit your bay window. Don't forget to send us a couple of photos of your window. Stand well back and get the whole window in the shot including the window sill.
The rear sheer track will come in 2 halves and be connected with a heavy duty joining splice. The front main track has either the same joining splice. Or you can select the overlapping track option.
Also, be aware that with these double bay window curtain tracks. They are made for hanging equal width pairs of curtains.
Simply measure around your bay window along the front lip of the window sill. Also add on the widths around the corners of the bay on to the walls on each side in the room. This is assuming your curtains are going to return out of the bay on each side. Then enter this total size in the top box on the form below.
If your curtains are only going to hang within the bay. Then measure again along the front lip of the window sills. Then add on for any walls on each side within the bay only. Then enter this total size in the top box on the form below.
